Angaben	Werte
Voltage	1~24 - 3~500 V
Speed	1500 1/MIN
Output	20 - 85 W
Diameter	65 MM

up to90 % EFFICIENCY

20—85WATT

ROSYNC: ENERGY-SAVING MOTORS

Extremely compact and efficient

ROSYNC motors offer maximum performance coupled with low power consumption. The secret of their great efficiency lies in the GreenDrive Technology they employ. The patented stator geometry and ultra-modern magnetic materials used ensure outstanding efficiency.

as a single-phase AC motor up to 75%

as a three-phase AC motor up to more than 90%

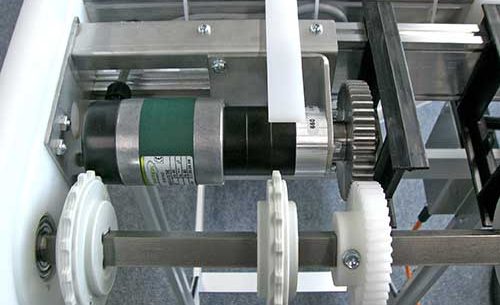

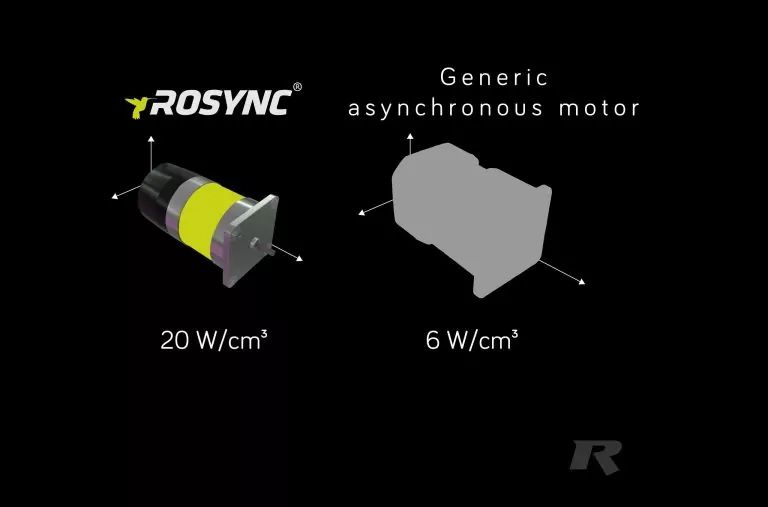

These properties are particularly important where long running periods are required, for instance, in conveyor belts. The high performance-to-size ratio makes them ideal for use where space is limited. ROSYNC motors meet today’s demands for efficient use of energy. In comparison with conventional single-phase synchronous motors they offer up to 40% more output power. As a three-phase motor they even offer up to 3 times more performance for the same size. This translates as maximum performance and efficiency for an astonishingly good price.

Information

General
Data

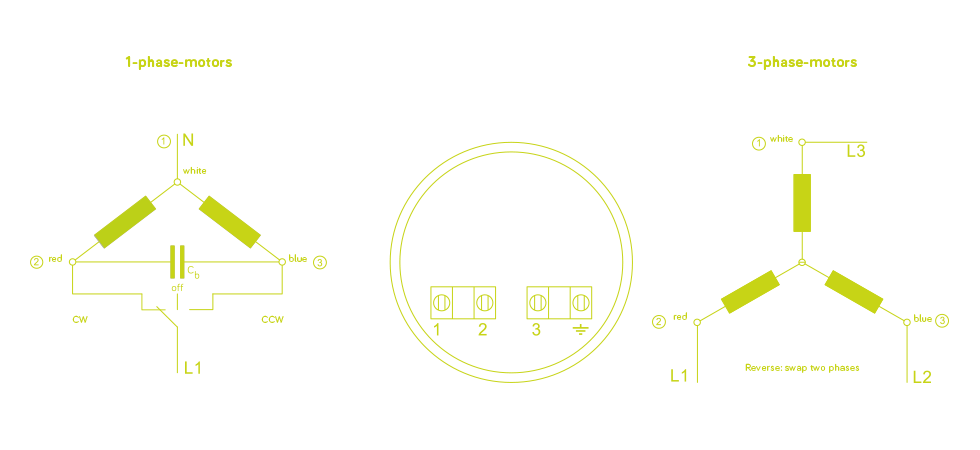

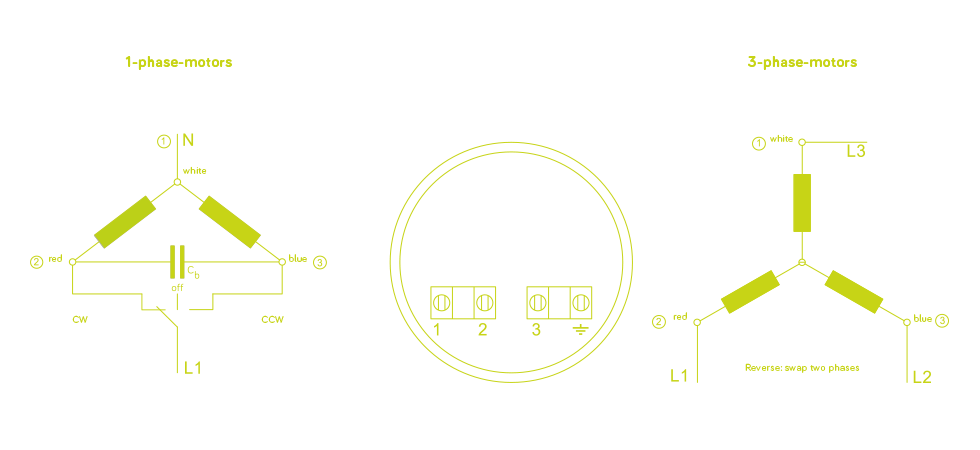

Wiring Diagrams

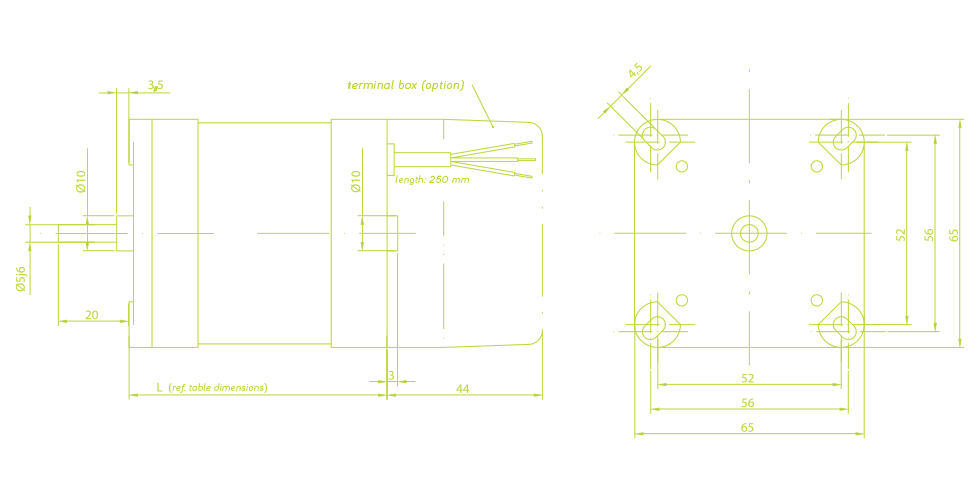

Dimensions

BENEFITS

long life expectancy
compact design
low power consumption

CHARACTERISTICS

constant speed
short startup and stopping times
maintenance-free

OPTIONS

special voltages
stronger versions for short-time operation
protection class IP55
mechanical modifications
thermal protection

general data
winding	S1 (EN 60034), Option S2, S3
insulation class	F 155 °C (EN 60034)
protection class	IP40 (EN 60529), Option IP55
bearings	ball bearing
connection type	flying leads or terminal box
emc tested	EN 61000-3-2/-4-5/-6-2/-6-3
RoHS, WEEE, REACH	✓
limit data
ambient temperatures	-25 °C — +50 °C
max. radial / axial load	40 N / 20 N
nominal voltage	+/- 10 %
nominal frequency	+/- 5 %
capacitor	+/- 5 %

voltage	frequency	speed	capacitor	rated current	input power	torque	output power	winding over temperature
V	Hz	1/min	µF	mA	VA	Ncm	W	K
motor type 44
3~400	50/60	1500/1800	-	100/85	70/60	32/25	50/47	85
3~230*			-	175/150	70/60	32/25	50/47	85
1~230			1,3	130/135	30/31	13/12	20/22	105
1~115			5,2	260/270
1~24			120	1250/1300
motor type 84
3~400	50/60	1500/1800	-	200/175	140/120	54/38	85/72	85
3~230*			-	350/300	140/120	54/38	85/72	85
1~230			2,0	220/240	51/55	23/21	36/40	105
1~115			8,0	440/480
1~24			180	2100/2300

Performance specs: Measured values at room temperature, rated voltage/capacity, adjusted for manufacturing tolerances.
*The safe operating frequency via an inverter is between 1 and 70 Hz.

Table as a PDF

	lead wire type		terminal box type
motor type	length in mm	weight in kg	length in mm	weight in kg
ROSYNC 44	74	0,85	118	0,95
ROSYNC 84	117	1,50	161	1,60

WANT TO CONFIGURE YOUR COMPONENTS YOURSELF?

No problem.

worth knowing

Lower storage costs

Rosync can be operated with 3~230 V and 3~400 V thanks to a solution developed in-house. This reduces the number of variants and the storage costs.

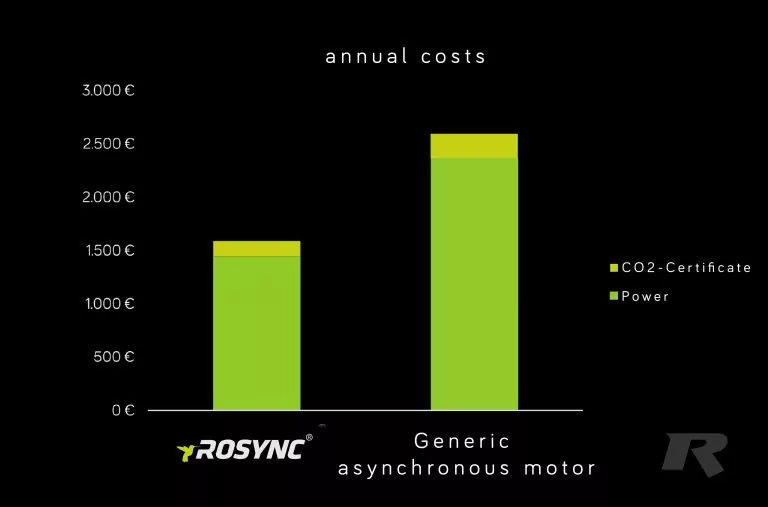

REDUCING ENERGY COSTS

Rosync with patented GreenDrive technology combines smooth running with excellent efficiency. This saves energy and material costs.

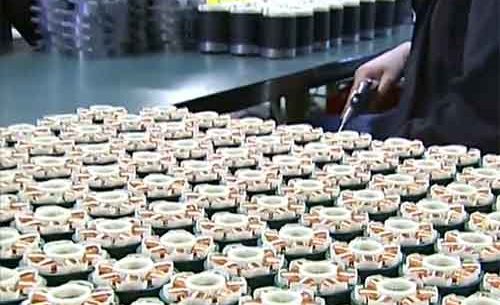

Environmental Award won

The patented GreenDrive Technology made ROSYNC the world's first energy-saving small motor for AC applications. For which, it achieved first place.

to the video

Gears suitable for the ROSYNC

ROSYNC with spur gears

Their many customisation options and gear ratios make them suitable for use in a wide range of applications, from equipment manufacturing to heavy-duty industrial environments.

ROSYNC with planetary gears

Special features of our planetary gear transmissions include their excellent performance-to-size ratio and durability under long-term loads. With high efficiency rates of ROSYNC they work particularly energy-efficient.

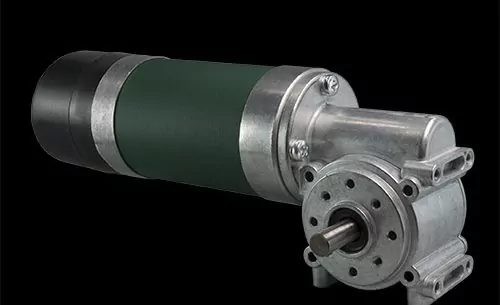

ROSYNC with worm gears

Our motors with worm gear transmissions are used to deflect forces by 90° when space is scarce or wherever a second shaft end is needed. Optionally our worm gears are available with hollow shafts.
