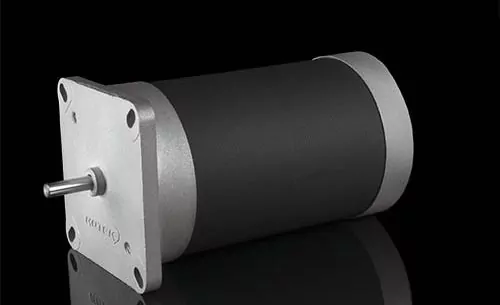

Synchronous motors ROBASE

FIRST CLASS MATERIALS – LONG LASTING QUALITY

As classical synchronous motors equipped with prominent stator teeth and ferrite magnets, they possess excellent self-holding torque and offer impressive service lives. First-class materials and precision finishing – the ROBASE motor range gives you convincing, in-depth quality and long life.

A special permanent magnet rotor ensures maximum efficiency: a combination of excellent technical characteristics, lower power consumption and compact construction.

GENERAL

BENEFITS

• long life expectancy
• compact design
• low power consumption

CHARACTERISTICS

• constant speed
• short start-up and stopping times
• self-holding torque
• maintenance free

OPTIONS

• special voltages
• stronger versions for short-time operation
• protection class IP55
• mechanical modifications
• thermal protection

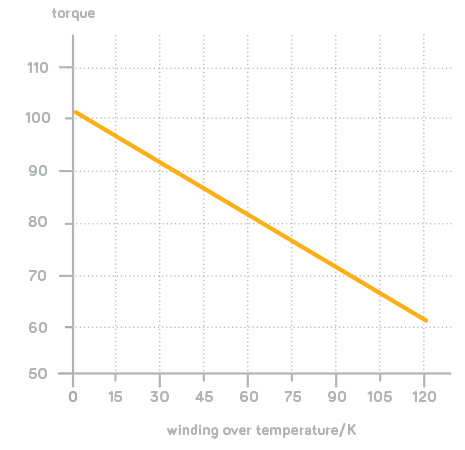

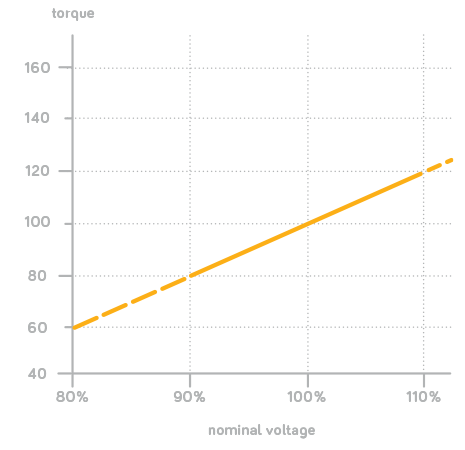

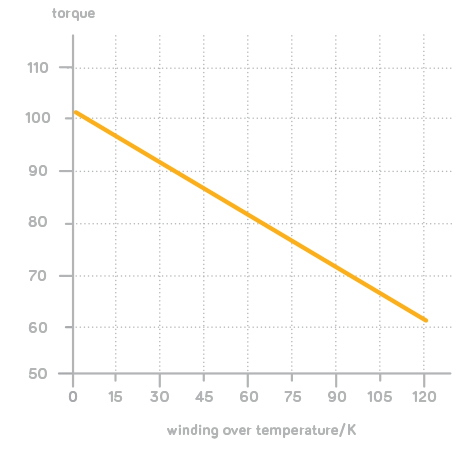

DATA 6-POLES

SYNCHRONOUS MOTORS ROBASE

Performance specs: Measured values at room temperature, rated voltage/capacity, adjusted for manufacturing tolerances.

*The safe operating frequency via an inverter is between 7 and 70 Hz.

DATA 4-POLES

SYNCHRONOUS MOTORS ROBASE

Performance specs: Measured values at room temperature, rated voltage/capacity, adjusted for manufacturing tolerances.

*Inverter operating between 7 and 70 Hz only possible with restrictions.

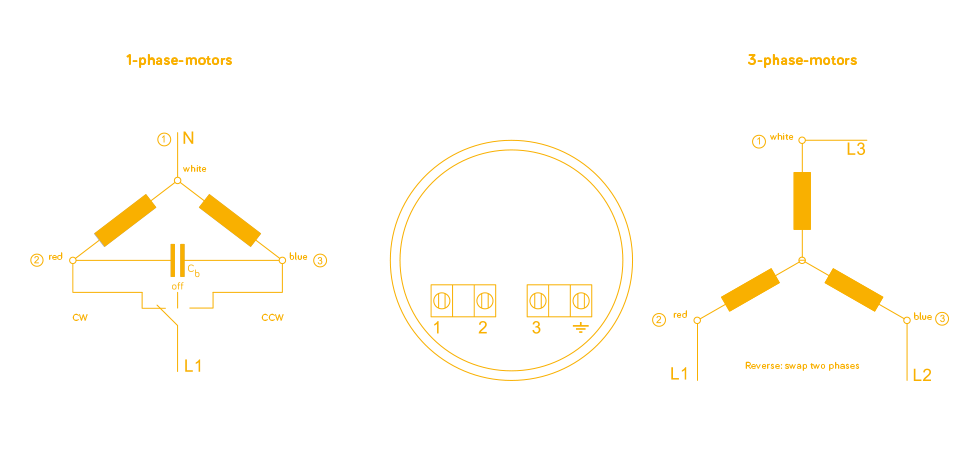

WIRING DIAGRAMS

SYNCHRONOUS MOTORS ROBASE

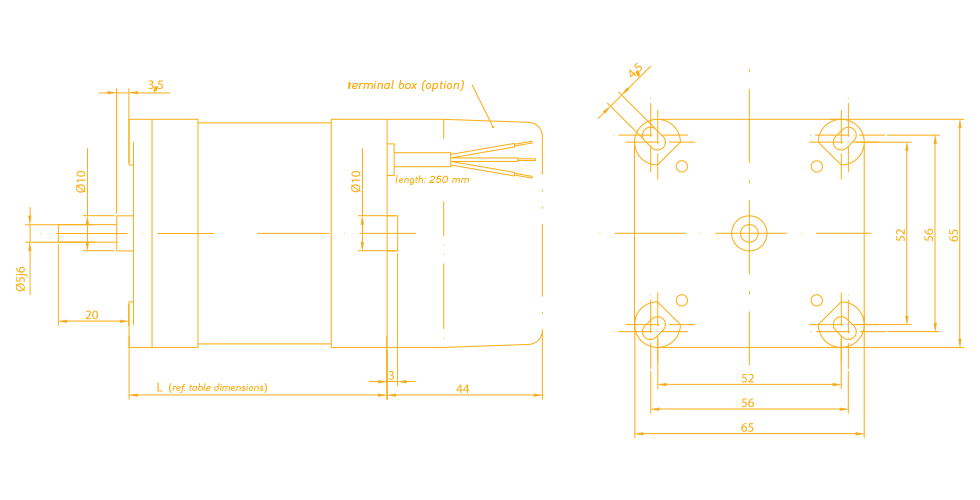

DIMENSIONS

SYNCHRONOUS MOTORS ROBASE

GEARS

PLANETARY GEARS

max. 3 – 50 Nm
i = 4:1 – 308:1
output shaft 8 – 14 mm
for motors up to 100 W

WORM GEARS

max. 5 – 12 Nm
i = 2,5:1 – 100:1
axle spacing 31 mm
for motors up to 50 W

SPUR GEARS

max. 6 – 13 Nm
i = 5:1 – 1.333:1
output shaft 8 – 12 mm
for motors up to 30 W

FLAT GEARS

max. 10 – 27 Nm
i = 30:1 – 1586:1
output shaft 8 – 15 mm,
for motors 20 – 50 W

NOTES FOR ORDERING

By clicking inside the table with the type code (example for ordering) you can download it (PDF file).
