HIGHLY EFFICIENT – AND QUIET TOO

Angaben Werte
max. torque
3 - 50 Nm
gear ratios i
4:1 - 308:1
diameter
42 / 52 / 62 mm
output shaft
8 - 14 mm
for motors up to
100 W
3—50NM
4:1—308:1

Planetary gears

Planetary gears have an excellent degree of efficiency

Our planetary gear transmissions are characterized by their excellent performance-to-size ratio and durability under long-term loads. Their robustness, low-maintenance needs, and range of variants make them ideal for the most demanding applications.

They are available in sizes 42 mm, 52 mm and 62 mm. Translations to 308:1 and permitted high drive torque up to 50 Nm are possible. For short periods they can be overloaded by 50 %.

BENEFITS

  • high torque within a small space
  • high impact resilience
  • excellent size to power ratio

CHARACTERISTICS

  • concentric output shaft
  • low backlash
  • maintenance free

OPTIONS

  • low-noise versions
  • customised shafts and flanges
  • special lubrication

general data
flangealuminium
gear wheelshardened heavy duty steel
protection classIP 40 (optional IP 53)
shaft bearings2 consecutive ball races
lubricationlife-time lubrication
assembly positionany
RoHS, WEEE, REACH✓
limit data
ambient temperatures– 15° C — +60° C
backlashmax. 0,9° (series R: 2,0°)
max. radial/axial load
Type Q160 N / 50 N 1 stage
230 N / 80 N 2 stages
300 N / 110 N 3 stages
Type P200 N / 60 N 1 stage
320 N / 100 N 2 stages
450 N / 150 N 3 stages
Type R240 N / 70 N 1 stage
360 N / 100 N 2 stages
520 N / 150 N 3 stages

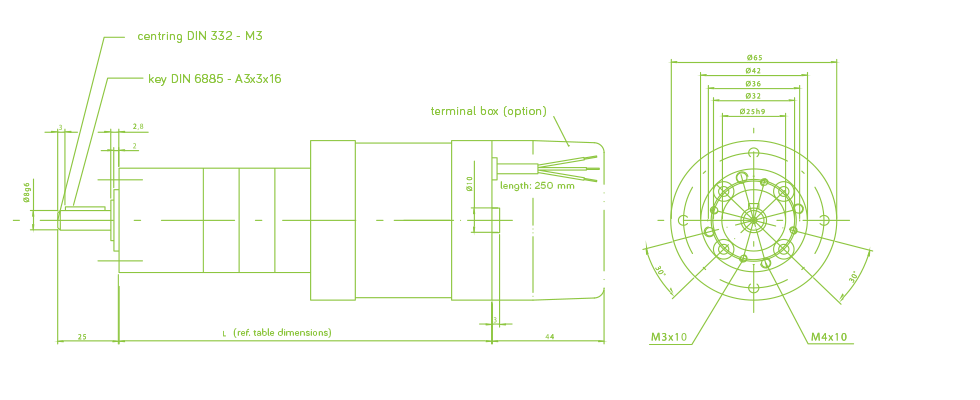

SYNCHRONOUS MOTORS WITH GEAR Q

length in mm (terminal box version +44 mm)weight in kg (terminal box version +0,1 kg)
geared motor1 stage2 stages3 stages1 stage2 stages3 stages
RO … 34 / 361021151281,001,101,20
RO … 44 / 461141271401,201,201,40
RO … 64 / 661321451581,451,451,55
RO … 84 / 861571701831,851,852,05

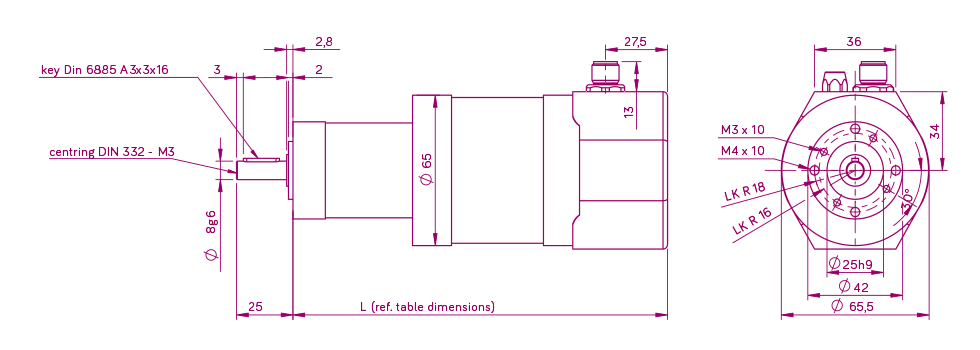

BLDC MOTORS ROMOTION WITH GEAR Q

length in mmweight in kg
geared motor1 stage2 stages3 stages1 stage2 stages3 stages
ROMOTION 441541671801,651,751,85
ROMOTION 841972102232,102,202,30

SYNCHRONOUS MOTORS WITH GEAR P

length in mm (terminal box version +44 mm)weight in kg (terminal box version +0,1 kg)
geared motor1 stage2 stages3 stages1 stage2 stages3 stages
RO … 34 / 361121261401,151,351,55
RO … 44 / 461241381521,351,551,75
RO … 64 / 661421561701,601,802,00
RO … 84 / 861671811952,002,202,40

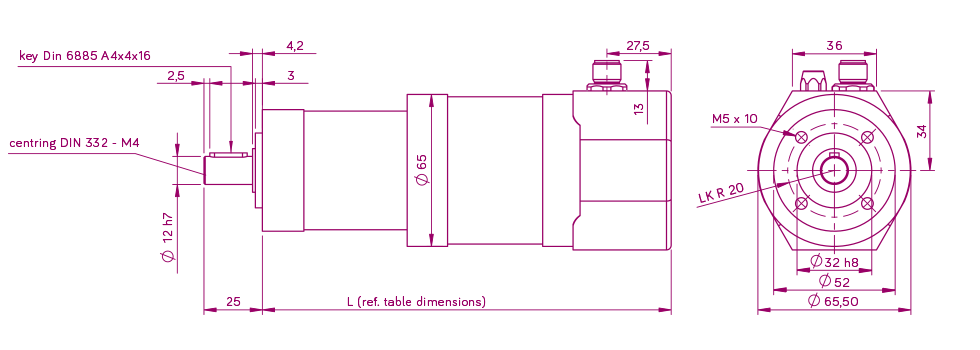

BLDC MOTORS ROMOTION WITH GEAR P

length in mmweight in kg
geared motor1 stage2 stages3 stages1 stage2 stages3 stages
ROMOTION 441641781921,802,002,20
ROMOTION 842072212352,252,452,65

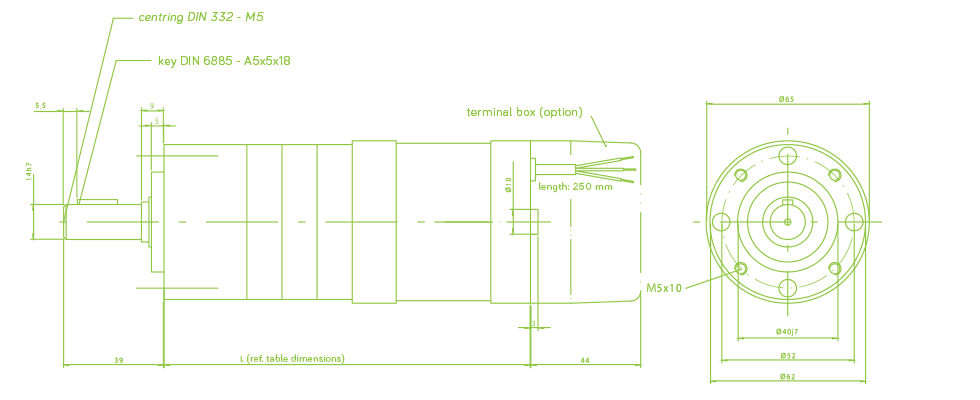

SYNCHRONOUS MOTORS WITH GEAR R

length in mm (terminal box version +44 mm)weight in kg (terminal box version +0,1 kg)
geared motor1 stage2 stages3 stages1 stage2 stages3 stages
RO … 34 / 361101271451,301,652,00
RO … 44 / 461221391571,501,852,20
RO … 64 / 661401571751,752,102,45
RO … 84 / 861651822002,152,502,85

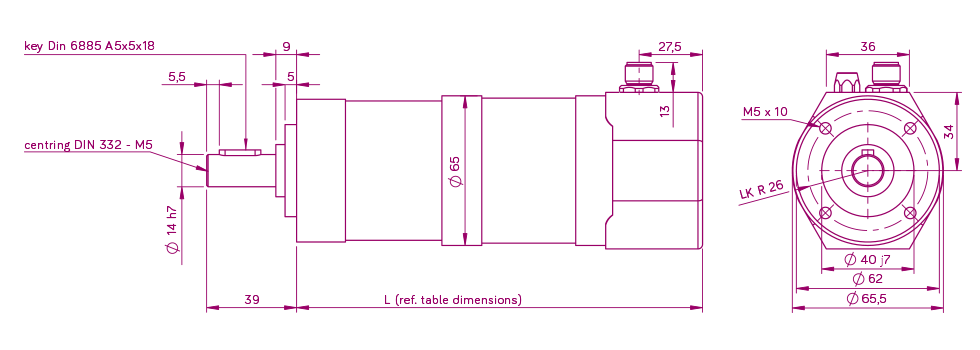

BLDC MOTORS ROMOTION WITH GEAR R

length in mmweight in kg
geared motor1 stage2 stages3 stages1 stage2 stages3 stages
ROMOTION 441621791971,952,302,55
ROMOTION 842052222402,402,753,10



DATA PLANETARY GEARS WITH SYNCHRONOUS MOTOR ROBASE 6-POLE

ratiopermitted torque (peak)speedtorque of motor types
iType QType PType R1/min36466686
NmNmNmNmNmNmNm
1 stage η = 80 %
4,33 (4,5)4 (6)8 (12)232,60,260,380,520,72
6.8147,10,410,600,821,14
2 stages η = 75 %
13,77,5 (11)12 (18)25 (37)73,00,771,131,542,16
22,245,01,251,832,503,50
28,934,61,632,383,254,55
3 stages η = 70 %
50,915 (22)25 (37)50 (75)19,62,673,925,347,48
58,917,03,094,546,188,66
68,114,73,585,247,1510,01
95,210,55,007,3310,0013,99
124,48,06,539,5813,0618,29
149,96,77,8711,5415,7422,04
195,35,110,2515,0420,5128,71
236,14,212,4018,1824,7934,71
307,83,216,1623,0732,3245,25
Exceeding the maximum permissible torque may lead to gear damage. Three-phase variants offer 10 to 30 % more torque.

Table (PDF-FORMAT)

DATA PLANETARY GEARS WITH SYNCHRONOUS MOTOR ROBASE 4-POLE

ratiopermitted torque (peak)speedtorque of motor types
iType QType PType R1/min34446484
NmNmNmNmNmNmNm
1 stage η = 80 %
4,33 (4,5)4 (6)8 (12)348,80,210,310,410,62
6,8220,60,330,490,650,98
2 stages η = 75 %
13,77,5 (11)12 (18)25 (37)109,50,620,921,231,85
22,267,61,001,502,003,00
28,951,91,301,952,603,90
3 stages η = 70 %
50,915 (22)25 (37)50 (75)29,52,143,214,286,41
58,925,52,473,714,957,42
68,122,02,864,295,728,58
95,215,84,006,008,0012,00
124,412,15,227,8410,4515,67
149,910,06,309,4412,5918,89
195,37,78,2012,3016,4124,61
236,16,49,9214,8719,8329,75
307,84,912,9319,3925,8638,78
Exceeding the maximum permissible torque may lead to gear damage. Three-phase variants offer 10 to 30 % more torque.

Table (PDF-FORMAT)



DATA PLANETARY GEARS WITH ENERGY SAVING MOTOR ROSYNC

ratiopermitted torque (peak)speedtorque of 1~ motor types torque of 3~ motor types
iType QType PType R1/min44844484
NmNmNmNmNmNmNm
1 stage η = 80 %
4,33 (4,5)4 (6)8 (12)348,80,450,791,101,86
6,8220,60,711,251,742,94
2 stages η = 75 %
13,77,5 (11)12 (18)25 (37)109,51,342,363,295,55
22,267,62,163,835,338,99
28,951,92,824,996,9411,70
3 stages η = 70 %
50,915 (22)25 (37)50 (75)29,54,638,1911,4019,24
58,925,55,369,4813,1922,26
68,122,06,2010,9615,2525,74
95,215,88,6615,3321,3235,99
124,412,111,3220,0327,8747,02
149,910,013,6424,1333,5856,66
195,37,717,7731,4443,7573,82
236,16,421,4938,0152,89–
307,84,928,0149,5668,95–
Exceeding the maximum permissible torque may lead to gear damage. Three-phase variants offer 10 to 30 % more torque.

Table (PDF-FORMAT)



DATA PLANETARY GEARS WITH LOW NOISE MOTOR ROSLYDE

ratiopermitted torque (peak)speedtorque of 1~ motor types torque of 3~ motor types
iType QType PType R1/min44844484
NmNmNmNmNmNmNm
1 stage η = 80 %
4,33 (4,5)4 (6)8 (12)348,80,240,480,450,89
6,8220,60,380,760,711,41
2 stages η = 75 %
13,77,5 (11)12 (18)25 (37)109,50,721,441,342,67
22,267,61,172,332,164,33
28,951,91,523,032,825,64
3 stages η = 70 %
50,915 (22)25 (37)50 (75)29,52,494,994,639,26
58,925,52,895,775,3610,72
68,122,03,346,676,2012,33
95,215,84,669,338,6617,33
124,412,16,1012,1911,3222,64
149,910,07,3514,6913,6427,28
195,37,79,5719,1417,7735,54
236,16,411,5723,1421,4942,87
307,84,915,0830,1628,0156,02
Exceeding the maximum permissible torque may lead to gear damage. Three-phase variants offer 10 to 30 % more torque.

Table (PDF-FORMAT)

DATA PLANETARY GEARS WITH BLDC MOTOR ROMOTION

ratiopermitted torque (peak)nominal speed/nominal torque
iType QType PType RROMOTION 44.2ROMOTION 84.2ROMOTION 84.4
NmNmNm1/minNm1/minNm1/minNm
1 stage η = 80 %
4,33 (4,5)4 (6)8 (12)7210,867211,177441,34
6,84561,364561,854712,12
2 stages η = 75 %
13,77,5 (11)12 (18)25 (37)2262,572263,492344,01
22,21404,161405,661446,49
28,91075,421077,371118,45
3 stages η = 70 %
50,915 (22)25 (37)50 (75)60,98,960,912,162,913,9
58,952,610,352,614,054,316,1
68,145,511,945,516,247,018,6
95,232,616,632,622,733,626,0
124,424,921,824,929,625,734,0
149,920,726,220,735,721,340,9
195,315,934,215,946,516,453,3
236,113,141,313,156,213,664,5
307,810,153,910,173,310,484,0
Exceeding the maximum permissible torque may lead to gear damage.

Table (PDF-FORMAT)

Gears Q, P and R

All in three versions (1-3 stage). At customers’ request all planetary gears are deliverable with special shafts, flanges and lubrication or with a IP53 degree of protection. Due to their outstanding performance, when coupled with our synchronous motors they form a highly compact and efficient drive unit. Additionally, if noise is a primary concern, a low-noise variant is available.

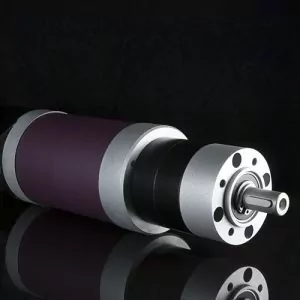

BLDC-motor ROMOTION 84 with planetary gear
BLDC-motor ROMOTION 84 with planetary gear

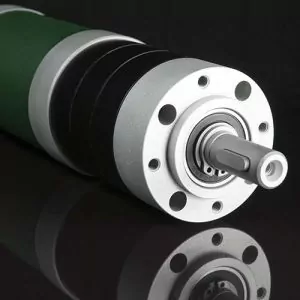

Energy-saving motor ROSYNC with planetary gear
Energy-saving motor ROSYNC with planetary gear

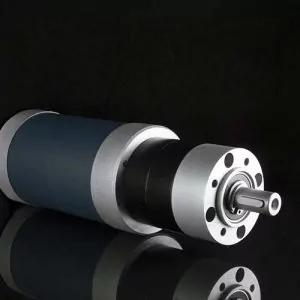

Low-noise motor ROSLYDE with planetary gear
Low-noise motor ROSLYDE with planetary gear

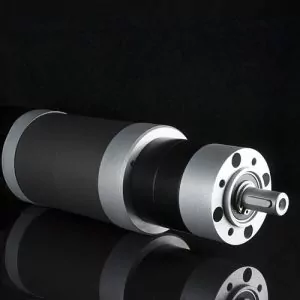

Synchronous motor ROBASE with planetary gear
Synchronous motor ROBASE with planetary gear
