Stainless steel motors ROTECT
Motors with Hygienic Design
ROTECT motors are especially suitable for hygienic processes on account of their smooth stainless-steel surface. At the same time, they provide optimal protection during high-pressure cleaning and in highly corrosive environments.
These properties make ROTECT an excellent solution in the area of food, chemical, and pharmaceutical production, as well as in the field of offshore technology.
Information
- General
- Gears
- Dimensions
FEATURES
- made of stainless steel 1.4404
- hygienic design
- smooth surface
- up to IP69K (in development)
- suitable for high-pressure-cleaning
INDUSTRIES
- food
- beverage
- chemical
- pharmaceutical
- offshore technology
SCOPE OF USE
- ambient temperature: - 25°C bis + 40°C
- for use in splash zone
- (no direct contact with product)
YOUR CHOICE OF MOTOR TECHNOLOGY
In addition, the ROTECT drive units provide maximum flexibility in terms of motor technology. You have the choice between our single-phase and three-phase alternating current motors and the BLDC motors with a peak output of up to 200 W. Combined with our planetary geared motors, which allow peak torques up to 75 Nm, the result is high-performance motors that are capable in every respect.
In addition, the ROTECT drive units provide maximum flexibility in terms of motor technology. You have the choice between our single-phase and three-phase alternating current motors and the BLDC motors with a peak output of up to 200 W. In conjunction with our planetary geared motors, which allow peak torques up to 75 Nm, the result is high-performance motors that are convincing in every respect.
BENEFITS
- high torque within a small footprint
- high impact resilience
- excellent size to power ratio
CHARACTERISTICS
- concentric output shaft
- low backlash
- maintenance free
OPTIONS
- low-noise versions
- customised shafts and flanges
- special lubrication
general data | |
gear wheels | hardened heavy duty steel |
shaft bearings | 2 consecutive ball races |
lubrication | life-time lubrication |
assembly position | any |
RoHS, WEEE, REACH | ✓ |
limit data | |
backlash | max. 0,9° (series R: 2,0°) |
max. radial/axial load | |
Type P | 150 N / 50 N 1 stage |
250 N / 80 N 2 stages | |
350 N / 110 N 3 stages | |
Type R | 190 N / 50 N 1 stage |
280 N / 80 N 2 stages | |
410 N / 110 N 3 stages |

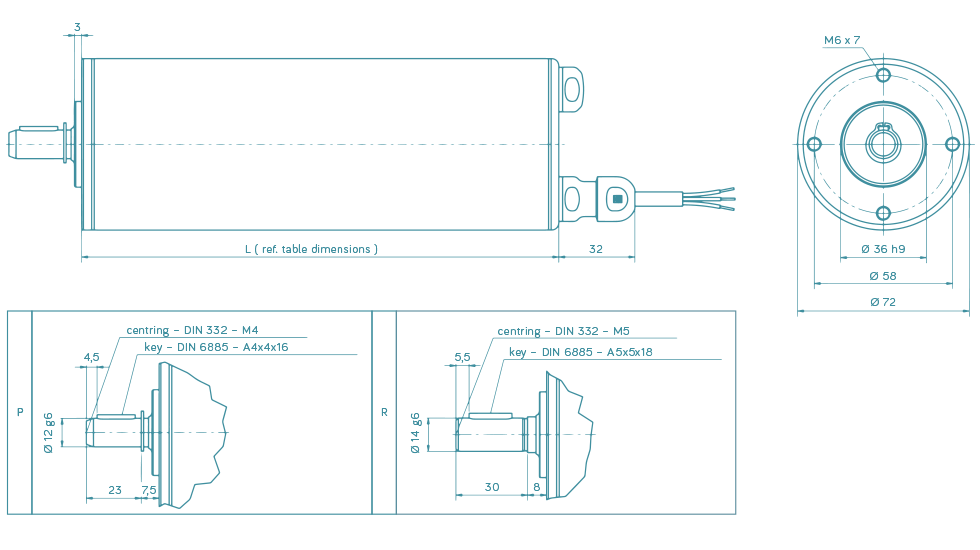

length in mm | weight in kg | |||||
---|---|---|---|---|---|---|
geared motor | 1 stage | 2 stages | 3 stages | 1 stage | 2 stages | 3 stages |
planetary gear P | ||||||
Rotect 34 / 36 | 160 | 200 | 200 | 2,40 | 2,80 | 3,00 |
Rotect 44 / 46 | 160 | 200 | 200 | 2,60 | 3,00 | 3,20 |
Rotect 64 / 66 | 200 | 200 | 240 | 3,05 | 3,25 | 3,60 |
Rotect 84 / 86 | 240 | 240 | 240 | 3,60 | 3,80 | 4,00 |
planetary gear R | ||||||
Rotect 34 / 36 | 160 | 200 | 200 | 2,55 | 3,10 | 3,45 |
Rotect 44 / 46 | 160 | 200 | 200 | 2,75 | 3,30 | 3,65 |
Rotect 64 / 66 | 200 | 200 | 240 | 3,20 | 3,55 | 4,05 |
Rotect 84 / 86 | 240 | 240 | 240 | 3,75 | 4,10 | 4,45 |
Data Rotect with planetary gears
- Data Robase
- Data Rosync
- Data Roslyde
- Data Romotion
OUTPUT DATA STAINLESS STEEL MOTOR ROTECT WITH ROBASE 6-POLIG
Depending on the application a higher duty type is possible. Exceeding the maximum permissible torque may lead to gearbox damage. Three-phase variants offer 10 to 30 % more torque. Further atios available on request.
ratio permitted torque (peak) speed torque of motor types
i Type P Type R 1/min 36 46 66 86
Nm Nm Nm Nm Nm Nm
duty type S3
75 %S3
50 %S3
50 %S3
33 %
1 stage η = 80 %
3,7 4 (6) 8 (12) 270,3 0,22 0,33 044 0,62
2 stages η = 75 %
13,7 12 (18) 25 (37) 73,0 0,77 1,13 1,54 2,16
25 40,0 1,41 2,06 2,81 3,94
3 stages η = 70 %
50,9 25 (37) 50 (75) 19,06 2,67 3,92 5,34 7,48
58,9 17,0 3,09 4,54 6,18 8,66
68,1 14,7 3,58 5,24 7,15 10,01
92,7 10,8 4,87 7,14 9,73 13,63
107,2 9,3 5,63 8,25 11,26 15,76
129,6 7,7 6,80 9,98 13,61 19,05
168,9 5,9 8,87 13,01 17,73 24,83
236,1 4,2 12,40 18,18 24,79 34,71
307,6 3,3 16,15 23,69 32,30 45,22
OUTPUT DATA STAINLESS STEEL MOTOR ROTECT WITH ROBASE 4-POLIG
Depending on the application a higher duty type is possible. Exceeding the maximum permissible torque may lead to gearbox damage. Three-phase variants offer 10 to 30 % more torque. Further atios available on request.
ratio permitted torque (peak) speed torque of motor types
i Type P Type R 1/min 36 46 66 86
Nm Nm Nm Nm Nm Nm
duty type S3
75 %S3
50 %S3
50 %S3
33 %
1 stage η = 80 %
3,7 4 (6) 8 (12) 405,4 0,18 0,27 0,36 0,53
2 stages η = 75 %
13,7 12 (18) 25 (37) 109,5 0,62 0,92 1,23 1,85
25 60,0 1,13 1,69 2,25 3,38
3 stages η = 70 %
50,9 25 (37) 50 (75) 29,5 2,14 3,21 4,28 6,41
58,9 25,5 2,47 3,71 4,95 7,42
68,1 22,0 2,86 4,29 5,72 8,58
92,7 16,2 3,89 5,84 7,79 11,68
107,2 14,0 4,50 6,75 9,00 13,51
129,6 11,6 5,44 8,16 10,89 16,33
168,9 8,9 7,09 10,64 14,19 21,28
236,1 6,4 9,92 14,87 19,83 29,75
307,6 4,9 12,92 19,38 25,84 38,76
OUTPUT DATA STAINLESS STEEL MOTOR ROTECT WITH ROSYNC
Depending on the application a higher duty type is possible. Exceeding the maximum permissible torque may lead to gearbox damage. Further ratios available on request
ratio permitted torque (peak) speed torque of 1 ~ motor types torque of 3 ~ motor types
i Type P Type R 1/min 44 84 44 84
Nm Nm Nm Nm Nm Nm
duty type S3
50 %S3
33 %S3
50 %S3
33 %
1 stage η = 80 %
3,7 4 (6) 8 (12) 405,4 0,38 0,68 0,95 1,6
2 stages η = 75 %
13,7 12 (18) 25 (37) 109,5 1,34 2,36 3,29 5,55
25 60,0 2,44 4,31 6,00 10,13
3 stages η = 70 %
50,9 25 (37) 50 (75) 29,5 4,63 8,19 11,40 19,24
58,9 25,5 5,36 9,48 13,19 22,26
68,1 22,0 6,20 10,96 15,25 25,74
92,7 16,2 8,44 14,92 20,76 35,04
107,2 14,0 9,76 17,26 24,01 40,52
129,6 11,6 11,79 20,87 29,03 48,99
168,9 8,9 15,37 27,19 37,83 63,84
236,1 6,4 21,49 38,01 52,89 89,25
307,6 4,9 27,99 49,52 68,90 116,27
OUTPUT DATA STAINLESS STEEL MOTOR ROTECT WITH ROSLYDE
Depending on the application a higher duty type is possible. Exceeding the maximum permissible torque may lead to gearbox damage. Further ratios available on request
ratio permitted torque (peak) speed torque of 1 ~ motor types torque of 3 ~ motor types
i Type P Type R 1/min 44 84 44 84
Nm Nm Nm Nm Nm Nm
duty type S1 S3
50 %S1 S3
75 %
1 stage η = 80 %
3,7 4 (6) 8 (12) 405,4 0,21 0,41 0,38 0,7
2 stages η = 75 %
13,7 12 (18) 25 (37) 109,5 0,72 1,44 1,34 2,67
25 60,0 1,31 2,63 2,44 4,88
3 stages η = 70 %
50,9 25 (37) 50 (75) 29,5 2,49 4,99 4,63 9,26
58,9 25,5 2,89 5,77 5,36 10,72
68,1 22,0 3,34 6,67 6,20 12,39
92,7 16,2 4,54 9,08 8,44 16,87
107,2 14,0 5,25 10,51 9,76 19,51
129,6 11,6 6,35 12,70 11,79 23,59
168,9 8,9 8,28 16,55 15,37 30,74
236,1 6,4 11,57 23,14 21,49 42,97
307,6 4,9 15,07 30,14 27,99 55,98
OUTPUT DATA STAINLESS STEEL MOTOR ROTECT WITH ROMOTION
ratio | permitted torque (peak) | nominal speed – nominal torque | ||||||
---|---|---|---|---|---|---|---|---|
i | Type P | Type R | ROMOTION 44.2 | ROMOTION 84.2 | ROMOTION 84.4 | |||
Nm | Nm | 1/min | Nm | 1/min | Nm | 1/min | Nm | |
1 stage η = 80 % | ||||||||
3,7 | 4 (6) | 8 (12) | 837,8 | 0,74 | 837,8 | 1,01 | 864,9 | 1,15 |
2 stages η = 75 % | ||||||||
13,7 | 12 (18) | 25 (37) | 226,3 | 2,57 | 226,3 | 3,49 | 233,6 | 4,01 |
25 | 124,0 | 4,69 | 124,0 | 6,38 | 128,0 | 7,31 | ||
3 stages η = 70 % | ||||||||
50,9 | 25 (37) | 50 (75) | 60,9 | 8,91 | 60,9 | 12,11 | 62,9 | 13,90 |
58,9 | 52,6 | 10,31 | 52,6 | 14,02 | 54,3 | 16,08 | ||
68,1 | 45,5 | 11,92 | 45,5 | 16,21 | 47,0 | 18,59 | ||
92,7 | 33,4 | 16,22 | 33,4 | 22,06 | 34,5 | 25,31 | ||
107,2 | 28,9 | 18,76 | 28,9 | 25,51 | 29,9 | 29,27 | ||
129,6 | 23,9 | 22,68 | 23,9 | 30,84 | 24,7 | 35,38 | ||
168,9 | 18,4 | 29,56 | 18,4 | 40,20 | 18,9 | 46,11 | ||
236,1 | 13,1 | 41,32 | 13,1 | 56,19 | 13,6 | 64,46 | ||
307,6 | 10,1 | 53,83 | 10,1 | 73,21 | 10,4 | 83,97 |
Gears suitable for ROTECT
ROTECT with planetary gears
We deliver our ROTECT motors with planetary gears type P and R. Special features of our planetary gear transmissions include their excellent performance-to-size ratio and durability under long-term loads.
