Like the Still of the Night
| Angaben | Werte |
|---|---|
|
Voltage |
1~24 - 3~500 V |
|
Speed |
1500 1/MIN |
|
Output |
11 - 40 W |
|
Diameter |
65 MM |

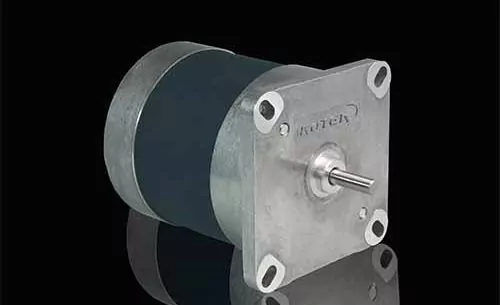

LOW-NOISE MOTORs ROSLYDE
Smooth running and low-vibration
When noise is the primary concern, our ROSLYDE motors are the ideal solution. Our SmoothDrive Technology allows our motors to run with low-vibration and low-noise.
This makes them the motor of choice for laboratory and domestic applications such as wood-burning stoves and rotary heat exchangers. For this reason, the self-holding torque typical of synchronous motors is reduced to a minimum.
Information
BENEFITS
- long life expectancy
- compact design
- low power consumption
CHARACTERISTICS
- constant speed
- short startup and stopping times
- maintenance-free
OPTIONS
- special voltages
- enhanced versions for short-time operation
- protection class IP55
- mechanical modifications
- thermal protection
| general data | |
| winding | S1 (EN 60034), Option S2, S3 |
| insulation class | F 155 °C (EN 60034) |
| protection class | IP40 (EN 60529), Option IP55 |
| bearings | ball bearing |
| connection type | flying leads or terminal box |
| emc tested | EN 61000-3-2/-4-5/-6-2/-6-3 |
| RoHS, WEEE, REACH | ✓ |
| limit data | |
| ambient temperatures | -25 °C — +50 °C |
| max. radial / axial load | 40 N / 20 N |

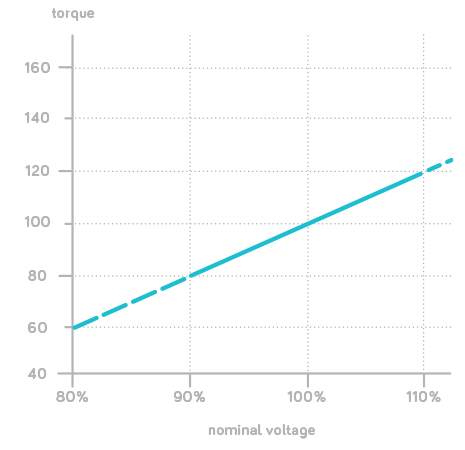

| nominal voltage | +/- 10 % |
| nominal frequency | +/- 5 % |
| capacitor | +/- 5 % |

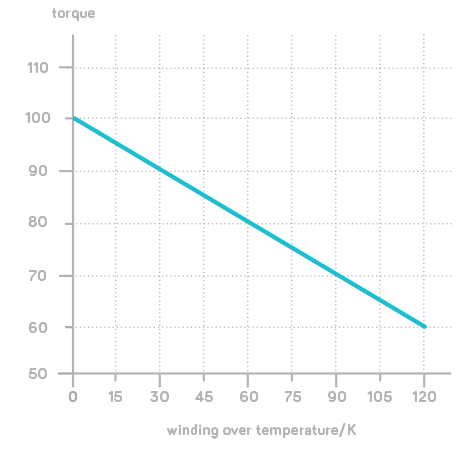

| voltage | frequency | speed | capacitor | rated current | input power | torque | output power | winding over temperature |
|---|---|---|---|---|---|---|---|---|
| V | Hz | 1/min | µF | mA | VA | Ncm | W | K |
| motor type 44 | ||||||||
| 3~400 | 50/60 | 1500/1800 | - | 55/43 | 38/30 | 13/8,5 | 20/16 | 20 |
| 3~230* | - | 100/80 | 40/32 | |||||
| 1~230 | 0,68 | 75/70 | 17/16 | 7/6 | 11 | 50 | ||
| 1~115 | 2,80 | 148/140 | ||||||
| 1~24 | 60 | 710/670 | ||||||
| motor type 84 | ||||||||
| 3~400 | 50/60 | 1500/1800 | - | 100/83 | 70/57 | 26/17 | 40/32 | 20 |
| 3~230* | - | 175/143 | ||||||
| 1~230 | 1,3 | 150/140 | 34,5/32 | 14/11,5 | 22 | 85 | ||
| 1~115 | 5,2 | 300/280 | ||||||
| 1~24 | 120 | 1440/1330 | ||||||
*The safe operating frequency via an inverter is between 1 and 70 Hz.

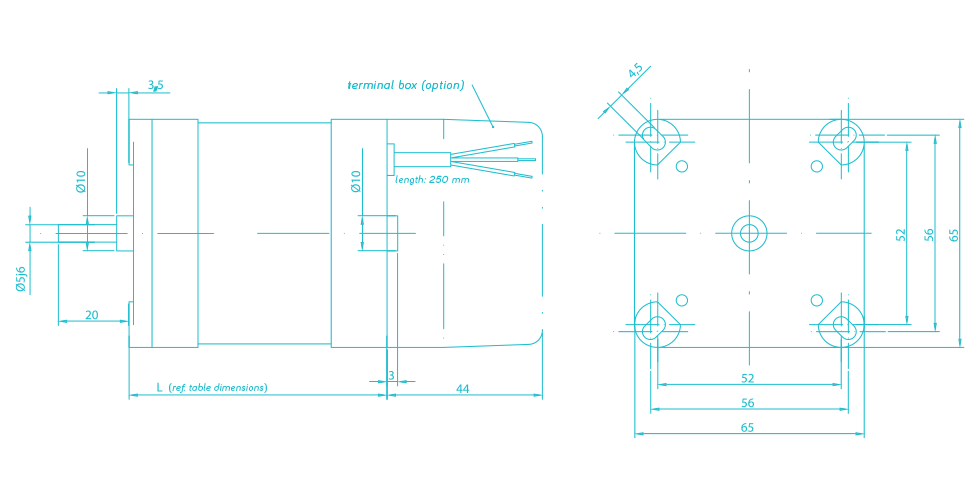

| lead wire type | terminal box type | |||
|---|---|---|---|---|
| motor type | length in mm | weight in kg | length in mm | weight in kg |
| ROSLYDE 44 | 74 | 0,85 | 118 | 0,95 |
| ROSLYDE 84 | 117 | 1,50 | 161 | 1,60 |
