Details Values
VOLTAGE
1~24 - 3~500 V
SPEED
1500 1/MIN
OUTPUT
11 - 40 W
DIAMETER
65 mm

4

POLIG

11

-

40

WATT

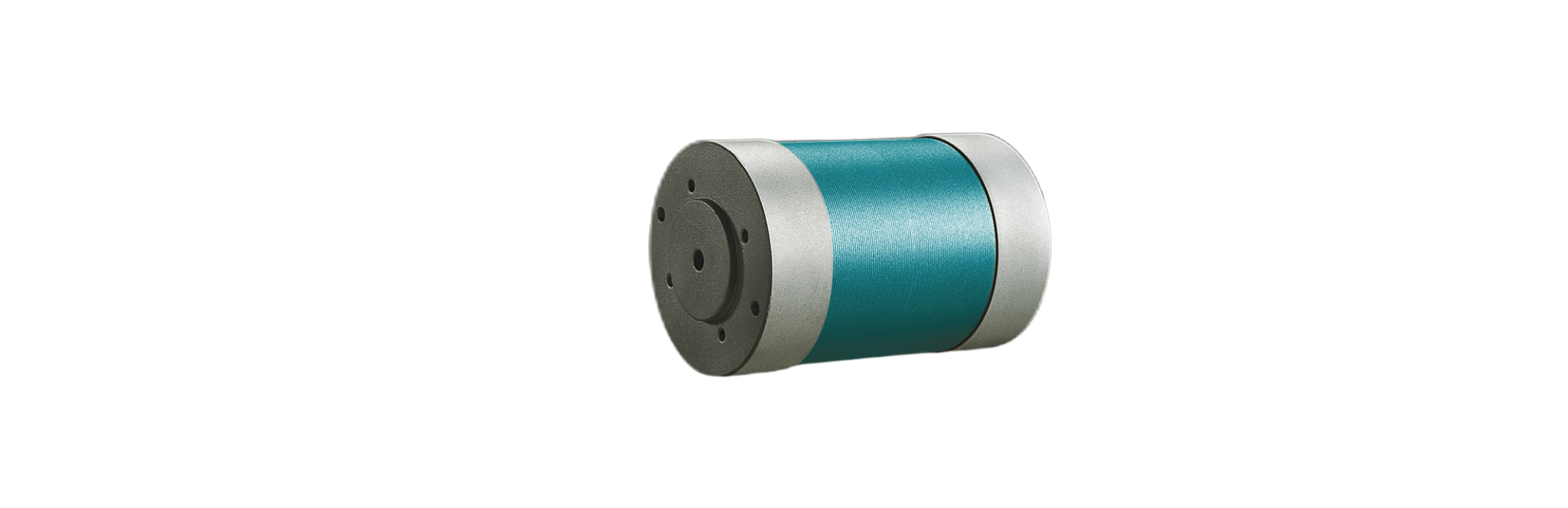

LOW-NOISE MOTORS ROSLYDe

Maximum running smoothness thanks to SmoothDrive Technology

The ROSLYDE is the ideal solution when the highest demands are placed on silence. It is specially designed for use in vibration-sensitive environments such as laboratories or living areas. Benefit from extremely quiet operation combined with high energy efficiency and a compact design.

Technical details

Advantages

  • Low-noise and low-vibration
  • Low energy consumption
  • Compact design
  • Low heating

General information

  • Continuous operation S1
  • Insulation class F 155 °C
  • Protection class IP40
  • Ambient temperature -25 to +50 °C
  • Max. Loads: radial 40 N / axial 20 N

Options

  • Special voltages
  • Increased power (short-time operation)
  • Protection class up to IP55
  • Integrated thermal protection
  • Stranded wire or terminal box connection
TensionFrequencySpeedCapacitorRated currentAbsorption capacityTorqueOutput powerWinding overtemperature
VHz1/minµFmAVANcmWK
Motor type 44
3~40050/601500/1800-55/4338/3013/8,520/1620
3~230*-100/8040/32
1~2300,6875/7017/167/61150
1~1152,80148/140
1~2460710/670
Motor type 84
3~40050/601500/1800-100/8370/5726/1740/3220
3~230*-175/143
1~2301,3150/14034,5/3214/11,52285
1~1155,2300/280
1~241201440/1330
Performance data: Measured values at room temperature and nominal voltage minus production-related tolerances. *Operation on the frequency inverter is possible in the range of 1-70 Hz.

Characteristic curves

Grafik Drehmoment & Spannung Low-Noise Motor ROSLYDE
Grafik Drehmoment & Temperatur Low-Noise Motor ROSLYDE

The connections shown correspond to the standard configuration. For series applications, we realise individual connector and cable solutions according to your specifications.

Anschlussbild Low-noise motor ROSLYDE
Maßbild Low-Noise Motor ROSLYDE
Stranded wire versionTerminal box design
Motor typeLength in mmWeight in kgLength in mmWeight in kg
ROSLYDE 44740,851180,95
ROSLYDE 841171,501611,60

Gearbox

Our modular system offers maximum flexibility: choose from our tried-and-tested spur, planetary and worm gearboxes, or talk to us about a bespoke solution tailored to your installation requirements.

Low-Noise Motor ROSLYDE mit Stirnradgetriebe

Spur gearbox

Torque
6–13 Nm
Translation (i)
5:1 – 1.333:1
Low-Noise Motor ROSLYDE mit Planetengetriebe

Planetary gearbox

Torque
3 – 50 Nm
Translation (i)
4:1 – 308:1
Low-Noise Motor ROSLYDE mit Schneckengetriebe

Worm gearbox

Torque
5–12 Nm
Translation (i)
2,5:1 – 100:1

You want to assemble the components yourself?

No problem.

From the practice

Whisper-quiet heat in the living area

In modern pellet cookers, the ROSLYDE guarantees undisturbed cosiness and maximum efficiency thanks to SmoothDrive Technology.

  • Low vibration: Minimises vibrations for almost silent operation.
  • Smooth running: Reduced cogging torque prevents mechanical noise.
  • Cool operation: Low self-heating protects thermally critical zones.
