| Details | Values |
|---|---|
|
TENSION |
1~24 - 3~500 V |
|
SPEED |
1500 1/MIN |
|
ISSUE |
20 - 85 W |
|
DIAMETER |
65 mm |
UP TO
90%
EFFICIENCY
20
-
85
WATT

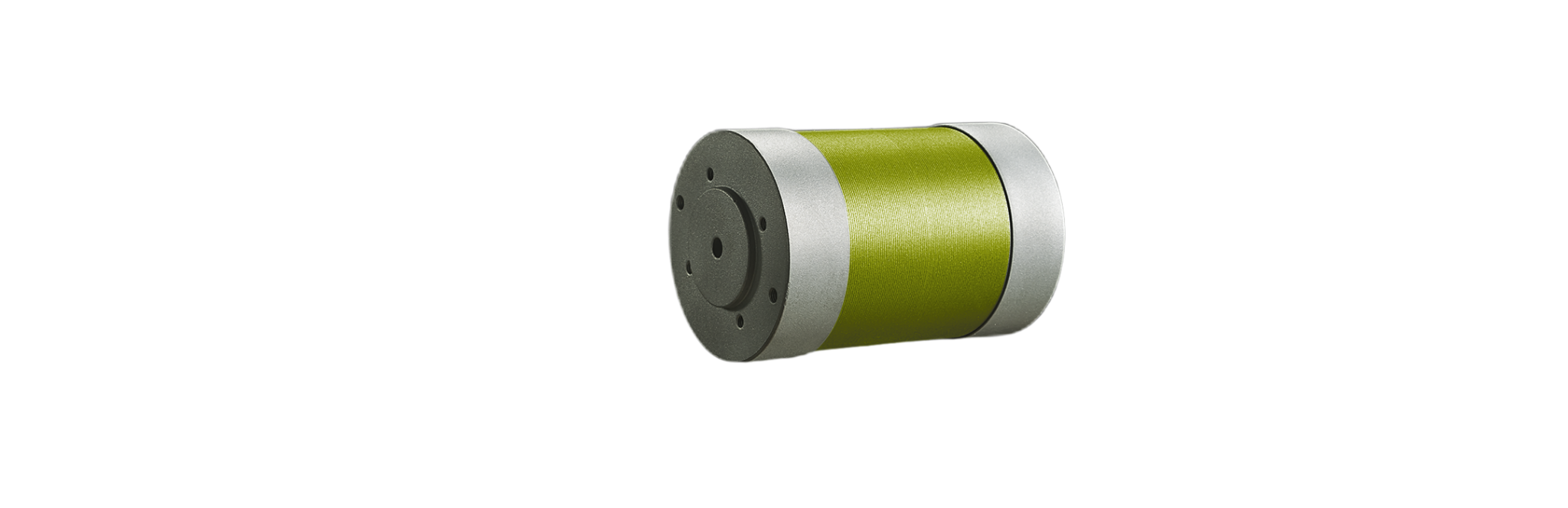

ROSYNC ENERGY-SAVING MOTORS
High efficiency - low energy consumption
The ROSYNC motors stand for maximum performance with low energy consumption. The secret of their high efficiency is GreenDrive Technology. A patented stator geometry and the use of modern magnetic materials ensure exceptional efficiency.
as capacitor motor up to 75%
as three-phase motor up to over 90%

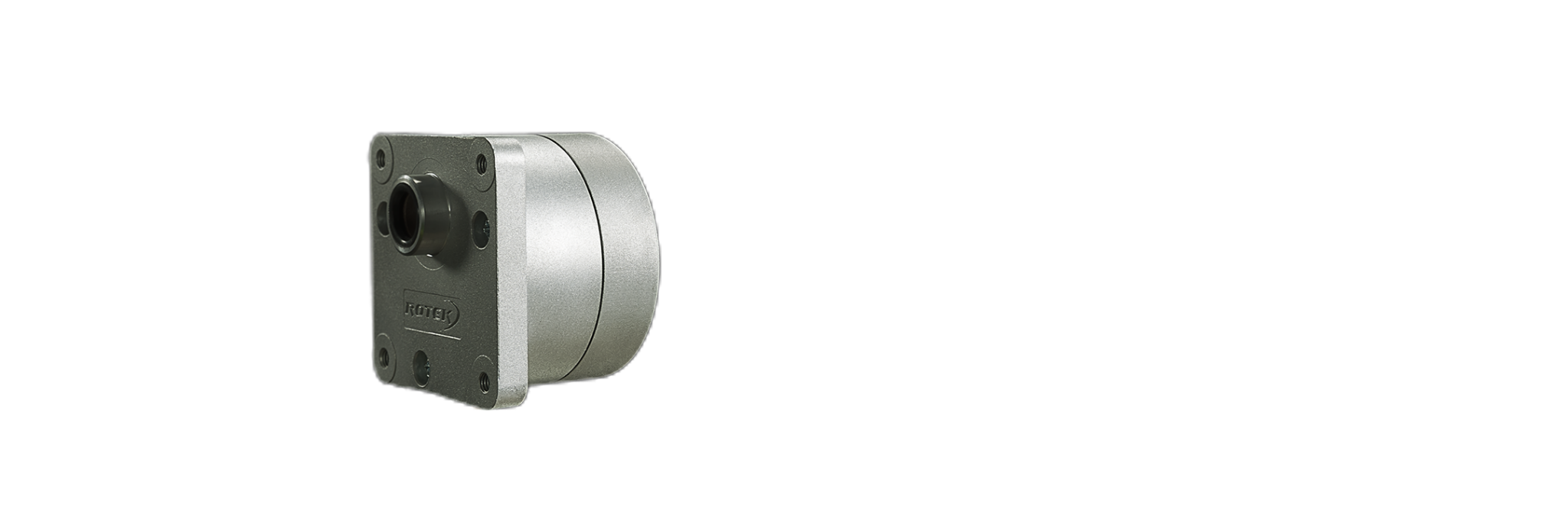

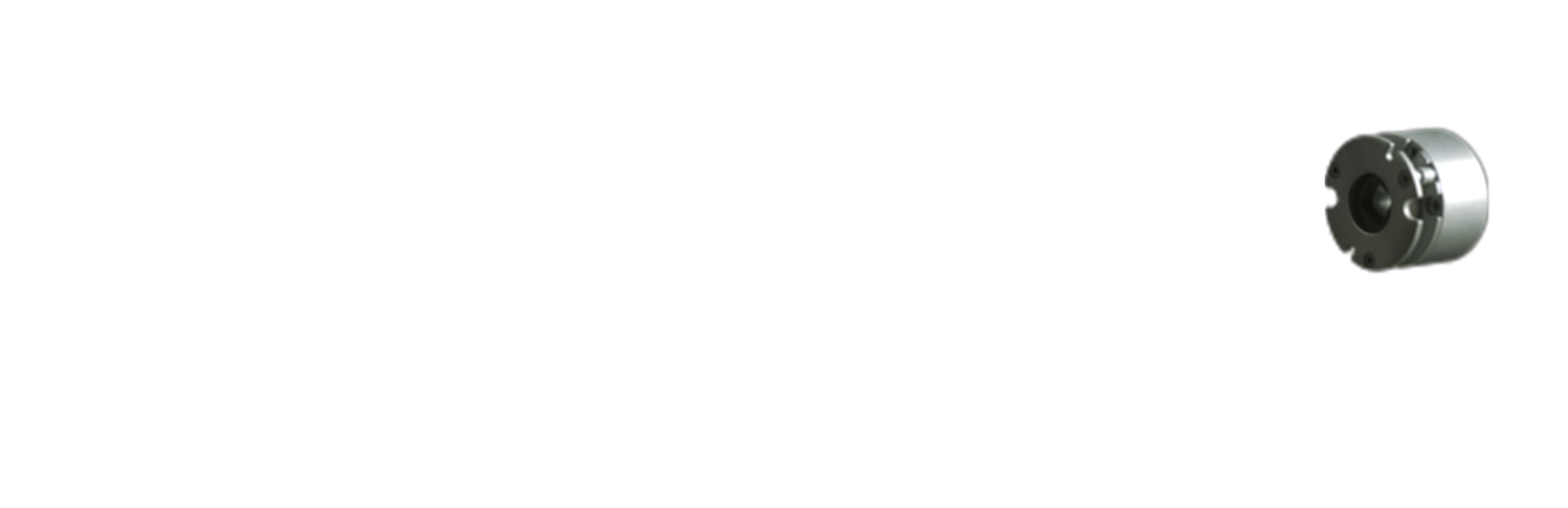

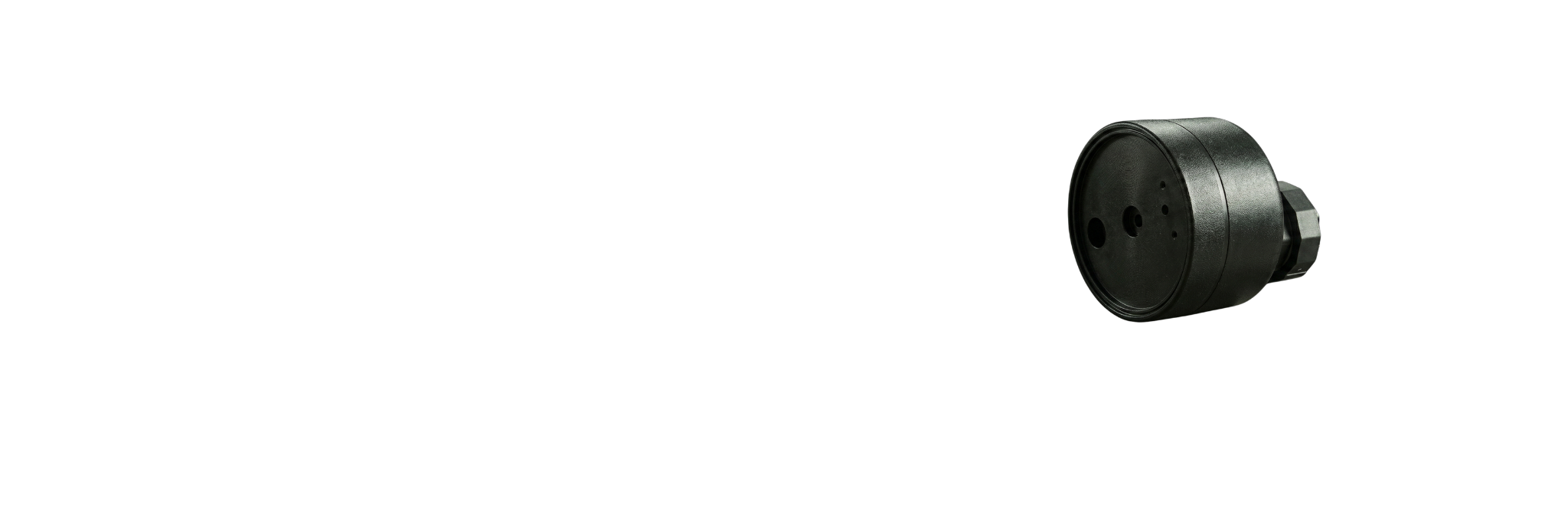

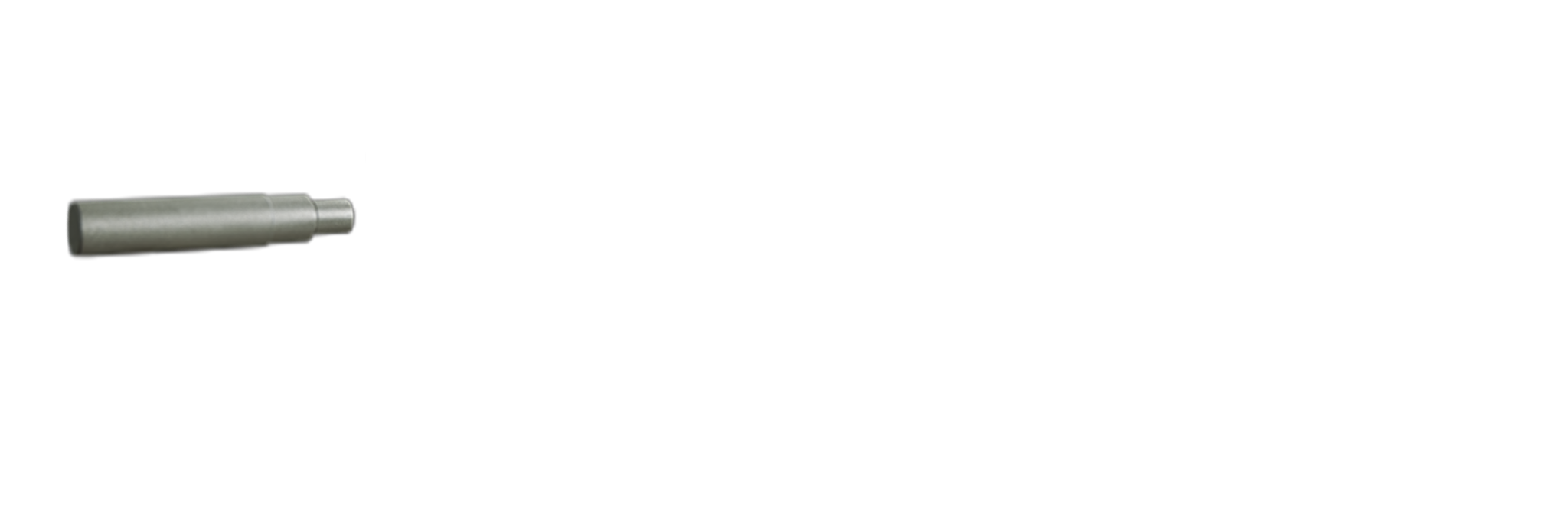

Compared to conventional single-phase synchronous motors, they offer up to 40% more output power. As a three-phase motor, they even offer up to three times the output with the same size. This means maximum performance and efficiency at an amazingly good price. This pays off particularly with long duty cycles, e.g. in conveyor belts. The high power density also allows use in very limited installation space. It has the same external design as the other Rotek motors and is compatible with all components from the Rotek modular system.
Reduce CO2 and costs with Rosync energy-saving motor
Information on
ADVANTAGES
- Long service life
- Compact design
- Low energy consumption
Properties
- Constant speed
- Short start/stop times
- Maintenance-free
OPTIONS
- Special voltages
- Reinforced versions for short-time operation
- Protection class IP55
- Mechanical adjustments
- Thermal circuit breaker
| General information | |
| Winding design | S1 (EN 60034), option S2, S3 |
| Insulation class | F 155 °C (EN 60034) |
| Protection class | IP40 (EN 60529), option IP55 |
| Storage | Ball bearing |
| Connection type | Stranded wires or terminal box |
| EMC testing | EN 61000-3-2/-4-5/-6-2/-6-3 |
| RoHS, WEEE, REACH | ✓ |
| Boundary data | |
| Ambient temperatures | -25 °C - +50 °C |
| Max. Radial load / Axial load | 40 N / 20 N |
| Nominal voltage | +/- 10 % |
| Nominal frequency | +/- 5 % |
| Capacitor (capacitance) | +/- 5 % |
| Tension | Frequency | Speed | Capacitor | Rated current | Absorption capacity | Torque | Output power | Winding overtemperature |
|---|---|---|---|---|---|---|---|---|
| V | Hz | 1/min | µF | mA | VA | Ncm | W | K |
| Motor type 44 | ||||||||
| 3~400 | 50/60 | 1500/1800 | - | 100/85 | 70/60 | 32/25 | 50/47 | 85 |
| 3~230* | - | 175/150 | ||||||
| 1~230 | 1,3 | 130/135 | 30/31 | 13/12 | 20/22 | 105 | ||
| 1~115 | 5,2 | 260/270 | ||||||
| 1~24 | 120 | 1250/1300 | ||||||
| Motor type 84 | ||||||||
| 3~400 | 50/60 | 1500/1800 | - | 200/175 | 140/120 | 54/38 | 85/72 | 85 |
| 3~230* | - | 350/300 | ||||||
| 1~230 | 2,0 | 220/240 | 51/55 | 23/21 | 36/40 | 105 | ||
| 1~115 | 8,0 | 440/480 | ||||||
| 1~24 | 180 | 2100/2300 | ||||||
| Stranded wire version | Terminal box design | |||
|---|---|---|---|---|
| Motor type | Length in mm | Weight in kg | Length in mm | Weight in kg |
| ROSYNC 44 | 74 | 0,85 | 118 | 0,95 |
| ROSYNC 84 | 117 | 1,50 | 161 | 1,60 |
Worth knowing
REDUCE STORAGE COSTS
Rosync can be operated with 3~230 V and 3~400 V thanks to a solution developed in-house. This reduces the number of variants and storage costs.
ENERGY COSTS
SINK
Rosync with patented GreenDrive technology combines smooth running with excellent efficiency. This saves energy and material costs.
ENVIRONMENTAL AWARD WON
The patented GreenDrive Technology made the ROSYNC the world's first energy-saving small motor for AC applications. It was awarded 1st place for this.
Gearboxes that fit the Rosync
ROSYNC with spur gear
Thanks to numerous customisation options and many gear ratios, our helical gearboxes are suitable for use in a wide range of applications - in appliance manufacturing as well as in harsh industrial environments.
ROSYNC with planetary gearbox
Our planetary gearboxes are characterised by their optimum power density and permanent load capacity. Thanks to their high efficiency, they work particularly energy-efficiently with the ROSYNC.
ROSYNC with worm gear
Our planetary gearboxes are characterised by their optimum power density and permanent load capacity. Thanks to their high efficiency, they work particularly energy-efficiently with the ROSYNC.
